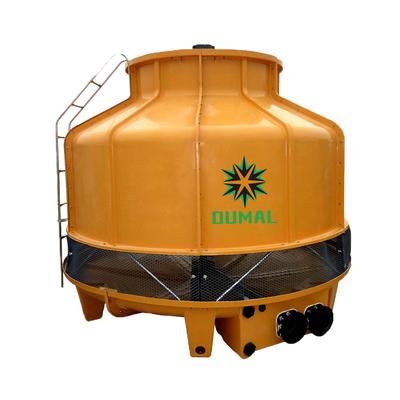

cooling tower

●：	from 8Ton to 300Ton
●：	Fibreglass Reinforced Polyester Casing
●：	T.E.F.C. Motor, Motor power supply: 3ph-380V-50Hz, other power supply can customized.

Description

Specification

Main Parts

FAQ

OUMAL cooling tower is suitable for airconditioning cooling system. Refrigeration systems, plastics, electroplating,chemical, ceramics and agricultrural science and technology and nurseries.

OUMAL Cooling tower made of high qualityPVC film. Cellumar fan pattern is strongly enhanced hot swap capacity, and canwithstand temperature up to 56℃, ensure that the water tower dry cooling performance up to theoptimum level, green and hightemperature film are optional.

Fan: axial fans. High grade plastic oraluminum alloy, each fan from the former factory have to undergo a rigorousprofessional positioning and balance tests.

All metal main parts are made of originalthick steel, hot-dip zinc anti-rust treatment by international standards.Stainless steel fittings are also available.

OUMAL cooling towers housing are anti-acidand alkali-resistant high-grade glass fiber reinforced materials. All pipes andwater spray equipment are made of high-grade plastic, without lubrication toensure the durability of the material.

Cooling tower specification

Item Model		OMC	8	10	15	20	25	30	40	50	60	80	100	125	150	200	250	300
Data	Nominal Flow	m3/h	6.23	7.81	11.7	15.6	19.8	23.4	31.2	39.2	46.8	62.6	78.1	97.6	117	156	195	234
	Air Volume	CMM	70	85	140	160	200	230	280	330	420	450	700	830	950	1250	1750	2000
	Motor	KW	0.18	0.18	0.37	0.56	0.75	0.75	1.5	1.5	1.5	1.5	2.25	2.25	2.25	3.75	5.5	7.5
	Noise Level	DBA	45.5	47	48	50	52	54	56	57	57	59	60	60	60	60	60	60
	Net Weight	KG	42	46	54	67	98	116	130	190	240	260	500	540	580	950	1200	1905
	Running Weight	KG	180	190	290	300	500	530	550	975	1250	1280	1600	1640	1680	2050	2920	4075
Piping	Water inlet	WI	40	40	50	50	80	80	80	80	100	100	125	125	150	150	200	200
	Water outlet	WO	40	40	50	50	80	80	80	80	100	100	125	125	150	150	200	200
	Overflow	OF	25	25	25	25	25	25	25	25	25	25	50	50	50	50	80	80
	Drain	DR	25	25	25	25	25	25	25	25	25	25	50	50	50	50	80	80
	Flow Valve	FV	15	15	15	15	15	15	15	15	20	20	20	20	20	25	32	32
Height	Tower	TH	1700	1830	1645	1930	2150	1895	2040	2120	2345	2510	2690	2875	2875	3735	4240	4465
	Motor	MH	170	170	170	170	180	180	200	200	270	270	320	320	320	570	660	760
	Casing	CH	940	1070	855	1140	1385	1130	1255	1255	1290	1455	1595	1780	1780	1965	2060	2185
	Air inlet	AH	170	170	170	170	245	245	245	245	325	325	325	325	325	350	620	620
	Water Basin	WH	420	420	450	450	340	340	340	420	460	460	450	450	450	850	900	900
	Water inlet	IN	270	270	280	280	175	175	175	230	295	295	300	300	300	245	280	280
	Water outlet	OH	180	180	190	190	115	115	115	125	200	200	230	230	230	300	300	300
	Foundation	FH	250	250	250	250	300	300	300	300	300	300	300	300	300	300	300	300
Diameter	Exhaust Fan	ED	550	635	635	770	770	770	930	930	1180	1180	1450	1450	1450	1750	2440	2745
	Water Basin	WD	920	920	1165	1165	1385	1650	1650	1880	2100	2100	2900	2900	2900	3310	4120	4730
	Foundation	FD	554	554	797	797	1016	1170	1170	1440	1660	1660	2495	2495	2495	3180	4330	4990
	Anchor Bolt	BD	9x3	9x3	9x3	9x3	9x3	9x4	9x4	9x4	11x4	11x4	11x6	11x6	11x6	16x8	16x12	16x12
Dimension	Foundation	FS	250	250	250	250	300	300	300	300	300	300	300	300	300	300	300	300
	Plate L	PL	140	140	150	150	140	140	140	180	200	200	210	210	210	180	180	180
	Plate W	PW	120	120	140	140	140	150	150	160	190	190	130	130	130	150	150	150
	Suction Tank	BC	480	480	690	690	880	830	830	1010	1180	1180	1230	1230	1230	400	800	800
	Bolt Center	SC	80	80	115	115	150	150	150	120	150	150	180	1480	180	2250	3060	3530
	Flange L	SL	390	390	515	515	600	780	780	835	915	915	1430	1430	1430	740	840	840
Material	Type of drive		Direct
	Exhaust Fan	EF01	Polycarbonate
	Motor	MT02	T.E.F.C. 380V-3Ph-50Hz
	Motor support	MS03	Galvanized steel
	Casing	CS05	Fibreglass Reinforced Polyester
	Water Basin	WB06	Fibreglass Reinforced Polyester
	Sprinkler system	SP08	Polycarbonate & P.V.C. Pipe
	Eliminator	ET10	Fibreglass Reinforced Polyester
	Air inlet support	AI11	Polycarbonate & P.V.C. Mesh
	Tower support	TS12	Fibreglass Reinforced Polyester
	Piping	PP14	P.V.C. Pipe
	In-fill support	IS15	Polycarbonate Poly & G.1.Steel
	In-fill	IF16	P.V.C. Film

Item Model		OMC	8	10	15	20	25	30	40	50	60	80	100	125	150	200	250	300
Data	Nominal Flow	m3/h	6.23	7.81	11.7	15.6	19.8	23.4	31.2	39.2	46.8	62.6	78.1	97.6	117	156	195	234
	Air Volume	CMM	70	85	140	160	200	230	280	330	420	450	700	830	950	1250	1750	2000
	Motor	KW	0.18	0.18	0.37	0.56	0.75	0.75	1.5	1.5	1.5	1.5	2.25	2.25	2.25	3.75	5.5	7.5
	Noise Level	DBA	45.5	47	48	50	52	54	56	57	57	59	60	60	60	60	60	60
	Net Weight	KG	42	46	54	67	98	116	130	190	240	260	500	540	580	950	1200	1905
	Running Weight	KG	180	190	290	300	500	530	550	975	1250	1280	1600	1640	1680	2050	2920	4075
Piping	Water inlet	WI	40	40	50	50	80	80	80	80	100	100	125	125	150	150	200	200
	Water outlet	WO	40	40	50	50	80	80	80	80	100	100	125	125	150	150	200	200
	Overflow	OF	25	25	25	25	25	25	25	25	25	25	50	50	50	50	80	80
	Drain	DR	25	25	25	25	25	25	25	25	25	25	50	50	50	50	80	80
	Flow Valve	FV	15	15	15	15	15	15	15	15	20	20	20	20	20	25	32	32
Height	Tower	TH	1700	1830	1645	1930	2150	1895	2040	2120	2345	2510	2690	2875	2875	3735	4240	4465
	Motor	MH	170	170	170	170	180	180	200	200	270	270	320	320	320	570	660	760
	Casing	CH	940	1070	855	1140	1385	1130	1255	1255	1290	1455	1595	1780	1780	1965	2060	2185
	Air inlet	AH	170	170	170	170	245	245	245	245	325	325	325	325	325	350	620	620
	Water Basin	WH	420	420	450	450	340	340	340	420	460	460	450	450	450	850	900	900
	Water inlet	IN	270	270	280	280	175	175	175	230	295	295	300	300	300	245	280	280
	Water outlet	OH	180	180	190	190	115	115	115	125	200	200	230	230	230	300	300	300
	Foundation	FH	250	250	250	250	300	300	300	300	300	300	300	300	300	300	300	300
Diameter	Exhaust Fan	ED	550	635	635	770	770	770	930	930	1180	1180	1450	1450	1450	1750	2440	2745
	Water Basin	WD	920	920	1165	1165	1385	1650	1650	1880	2100	2100	2900	2900	2900	3310	4120	4730
	Foundation	FD	554	554	797	797	1016	1170	1170	1440	1660	1660	2495	2495	2495	3180	4330	4990
	Anchor Bolt	BD	9x3	9x3	9x3	9x3	9x3	9x4	9x4	9x4	11x4	11x4	11x6	11x6	11x6	16x8	16x12	16x12
Dimension	Foundation	FS	250	250	250	250	300	300	300	300	300	300	300	300	300	300	300	300
	Plate L	PL	140	140	150	150	140	140	140	180	200	200	210	210	210	180	180	180
	Plate W	PW	120	120	140	140	140	150	150	160	190	190	130	130	130	150	150	150
	Suction Tank	BC	480	480	690	690	880	830	830	1010	1180	1180	1230	1230	1230	400	800	800
	Bolt Center	SC	80	80	115	115	150	150	150	120	150	150	180	1480	180	2250	3060	3530
	Flange L	SL	390	390	515	515	600	780	780	835	915	915	1430	1430	1430	740	840	840
Material	Type of drive		Direct
	Exhaust Fan	EF01	Polycarbonate
	Motor	MT02	T.E.F.C. 380V-3Ph-50Hz
	Motor support	MS03	Galvanized steel
	Casing	CS05	Fibreglass Reinforced Polyester
	Water Basin	WB06	Fibreglass Reinforced Polyester
	Sprinkler system	SP08	Polycarbonate & P.V.C. Pipe
	Eliminator	ET10	Fibreglass Reinforced Polyester
	Air inlet support	AI11	Polycarbonate & P.V.C. Mesh
	Tower support	TS12	Fibreglass Reinforced Polyester
	Piping	PP14	P.V.C. Pipe
	In-fill support	IS15	Polycarbonate Poly & G.1.Steel
	In-fill	IF16	P.V.C. Film
